Scenario: fanet

Class: FANET — 3-D, smooth trajectories, fast link churn (#300)

← Benchmark index · Metrics · Methodology

A separate family, not a variant of the planar corpus. Every other scenario page measures a planar field. This one places and moves nodes in a 3-D box (--areaZ, #480), so its cells are not comparable with the MANET pages. Read them against each other and against the FANET anchors, never against the Broch floor, which is RWP-on-the-ground only.

What it stresses

Flying ad hoc networks: a small swarm moving fast and smoothly in three dimensions. Two things change against the ground field: - links break more often and more abruptly, because closing speeds reach 60 m/s; - the third dimension spreads the same number of nodes over more volume, so density, not routing, is the first thing to get wrong.

The preset is built so that the main cell measures routing, and a second cell measures the partition regime deliberately.

Configuration

--scenario=fanet (added in #482). The preset carries scenario knobs only (ADR-0019): no AntHocNet attribute (HelloInterval, QueueTimeout, acceptance factors, …) is changed for this family. Every value below can be overridden on the command line; an explicit flag always wins.

cell	nodes	field (m)	range (m)	mobility	speed (m/s)	flows	per-flow rate	time (s)	propagation
fanet (main)	30	1000 × 1000 × 300	350	Gauss-Markov	U(10, 30)	10	4 × 64 B/s (2048 bps)	900	disk
fanet + --range=250 (sparse)	30	1000 × 1000 × 300	250	Gauss-Markov	U(10, 30)	10	4 × 64 B/s (2048 bps)	900	disk

Flows start uniformly in [0, 180] s, as in the paper preset. Gauss-Markov uses the harness's existing settings: α = 0.85, a 1 s time step, and a uniform mean direction. --pause is inert under Gauss-Markov and the preset sets it to 0.

Provenance

Each value is either sourced (a published setup uses it or brackets it) or chosen (a decision this repo made, with its reason). Nothing is left unlabelled: unsourced constants were the root cause of #88, #169 and #173.

knob	value	kind	where it comes from
mobility	Gauss-Markov, 3-D	sourced	The standard FANET entity model in the #298 survey. Used with a 3-D box in ns-3 by Makkar, Singh & Singh (2018)¹ and in 2-D by Yang et al. (2024)². Biomo et al. (2015)³ evaluate five entity models for UAV networks and conclude that the (enhanced) Gauss-Markov model is best suited to them.
field	1000 × 1000 × 300 m	chosen, inside the sourced envelope	The #298 draft envelope (about 1000 × 1000 × 300 m). Published fields bracket it: 1500 × 1500 m² (2-D)² and a 1700 × 1700 × 1500 m cube¹. A 300 m altitude extent keeps the swarm flat-ish, like a survey swarm, rather than a cube.
nodes	30	chosen, inside the sourced envelope	The #298 envelope (20–40 UAVs); Yang et al.² sweep 40–140. Fixed at 30 so that the main cell's density clears the connectivity line (next row).
range	350 m main, 250 m sparse	chosen for density	The #481 preflight measures the in-box pair probability (box_in_range_prob). At 30 nodes, a mean degree of 7.2 at 350 m clears 2·ln(30) = 6.8, so the main cell measures routing. 250 m (the #298 draft value) gives 3.5, right at ln(30) = 3.4, so that cell partitions and is kept as the deliberate sparse cell, like sparse-static. Published ranges bracket both: 200 m² to 1000 m³. Air-to-air links are line of sight, which makes a longer range than the ground cells' 250–300 m physically defensible.
speed	U(10, 30) m/s	chosen, inside the sourced envelope	The #298 envelope (10–30 m/s, small rotorcraft and slow fixed-wing). Yang et al.² use maximum speeds of 20–60 m/s; fixed-wing evaluations run faster still³. The floor of 10 m/s (--speedMin, new in #482) keeps the swarm from idling: the harness's historical U(1, max) would put many UAVs near hover.
pitch	mean U(−0.05, 0.05) rad; perturbation Normal(0, 0.02), bounded at 0.04 rad	assumption	No published FANET evaluation found states its Gauss-Markov pitch parameters. These are the harness's direction perturbation scaled down by ten (#480). Recorded here as an assumption, not a citation.
α (memory)	0.85	harness value	The harness's Gauss-Markov setting since #61, unchanged so the planar and 3-D arms share it.
traffic	10 CBR flows, 4 × 64-byte packets/s	chosen	Low-rate telemetry. The per-flow rate is the AntHocNet thesis's (Ducatelle 2007 §5.1.3, "4 packets of 64 bytes per second"). 10 flows on 30 nodes keeps the paper's sources-to-nodes ratio (20/50) roughly constant. The offered load is 20 kbps, about 1 % of the 2 Mbit/s channel, so the cell measures routing, not congestion.
propagation	disk (range)	sourced constraint	Two-ray ground reflection and Nakagami (built on it) assume antennas over a ground plane, which is meaningless between aircraft; the harness refuses them with --areaZ (#480). A fading arm for 3-D needs a model that does not assume a ground plane and is out of scope here.
time	900 s	chosen	The paper/thesis horizon, so a FANET cell has the same statistical weight per seed as a MANET one.

1. S. Makkar, Y. Singh, R. Singh, "Performance Investigation of OLSR and AODV Routing Protocols for 3D FANET Environment using NS3", Journal of Communication Engineering & Systems 8(2), 2018. ns-3; Gauss-Markov in a 1700 × 1700 × 1500 m cube.
2. S. Yang, S. Wang, T. Li, T. Hu, Z. Xu, R. He, B. Zhang, "Hybrid ant colony-based inter-cluster routing protocol for FANET", Scientific Reports 14, 15632 (2024), doi:10.1038/s41598-024-64454-1. OMNeT++; 40–140 UAVs; 1500 × 1500 m²; Gauss-Markov; maximum speeds 20–60 m/s; 200 m range; CBR.
3. J.-D. Medjo Me Biomo, T. Kunz, M. St-Hilaire, Y. Zhou, "Unmanned Aerial ad Hoc Networks: Simulation-Based Evaluation of Entity Mobility Models' Impact on Routing Performance", Aerospace 2(3), 392–422 (2015), doi:10.3390/aerospace2030392. Cited here for its conclusions as stated in the abstract. Its parameter table could not be retrieved for this page (the publisher blocks automated access), so no value above rests on it alone.

Preflight (#481): both cells pass with WARNs only.

python3 tools/bench/scenario_check.py preflight \
  --nodes 30 --areaX 1000 --areaY 1000 --areaZ 300 --range 350 \
  --speed 30 --pause 0 --mobility gaussmarkov --flows 10 --cbrBps 2048 \
  --pathWindowS 2

The 3-D WARN says the cell is its own family. The sparse cell (--range 250) additionally WARNs that partitions are likely, which is its purpose. Link lifetime at 30 m/s is about 5.8 hello periods at 350 m and 4.2 at 250 m, above the 3-period WARN line, so HelloInterval is not a concern (ADR-0019 forbids retuning it per family anyway).

Anchors

The Broch AODV floor is RWP on the ground and does not transfer. The FANET family has its own analytic anchors, gated in CI on the 3.42 leg (ns3/tools/check-anchors.sh, floors in ns3/tools/anchors.yml). Both run the preset with only the field shrunk, and route only stock AODV and the oracle control.

anchor	field	expected (derived)	measured	what it checks
fanet-single-hop-3d	10 nodes, 100 m cube, 350 m	the 173 m diagonal keeps every pair in range, so every flow is one hop: PDR ≈ 100 % and oracle hopsMean = 1.00 exactly	AODV 100.0 %, oracle 100.0 %, hopsMean 1.00	3-D placement, mobility and channel deliver at all
fanet-vertical-3d	10 nodes, 10 × 10 × 1000 m column, 350 m	planar distances are all < 15 m, so a field flattened to 2-D reads hopsMean = 1.00; with altitude honoured, pairs > 350 m apart need relays: hopsMean > 1.2	AODV 98.9 %, oracle 98.9 % (98.6 % at the pre-#506 1 s recompute), hopsMean 1.90	the third dimension is real end to end

Results

20 seeds per cell, 900 s, image 3.42-opt. Six arms run on identical realisations:

• the four classical protocols (AntHocNet, AODV, OLSR, DSDV);
• AOMDV, the multipath baseline (#296);
• the oracle control.

Means carry t 95 % CI half-widths. delay99 is a mean with a percentile-bootstrap interval. Provenance and run IDs are below.

GPSR is not in the arm set, and no geographic protocol is. The harness refuses gpsr whenever --areaZ > 0 (#480), because the vendored GPSR's headers and planarization are 2-D: it would route on projected positions and measure an artifact of the projection. This is a threat to validity for the family. Geographic forwarding is a major FANET design point, and this page has no arm for it.

The oracle column uses a 100 ms RecomputeInterval, not the 1 s default. At the default it is not a bound on this family (#506); see the oracle at FANET speeds below. Since #506, --scenario=fanet sets the 100 ms itself and records it on the ##CONFIG## row. The published cells passed it explicitly, with byte-identical effect. An explicit RecomputeInterval on the command line still wins.

The OLSR column is offered-based (#510). Before #510, stock OLSR's PDR left out the sends its source refused for want of a route, so it read 3.80 pp high here and 23.53 pp high in the sparse cell. The OLSR column below comes from a re-run with the fix. Its other columns are byte-identical to the six-arm dispatch. Only PDR, the offered-load percentiles and the drop book changed.

Energy is energy per delivered application bit (mJ/bit, ##ENERGY##, #508). The radio's idle draw dominates the total, which is near-identical across arms on a seed. This column is therefore an efficiency restatement of delivery (metrics.md). It is quoted because its ordering agrees with the PDR ordering in both cells, not as independent evidence.

Restated on CBR sources (#521)

Both cells were re-measured on constant-bit-rate sources. Until #521 the sources ran ns-3's default 1 s on / 1 s off, so each FANET flow was offered 2 pkt/s in bursts of four, not the configured 4 pkt/s. The cell offered 10 kbps, not the 20 kbps in the configuration table.

Provenance. Six arms, 20 seeds, 900 s, 3.42-opt, at main @ d26ae640. The knobs are identical to the published dispatch, and the oracle's 100 ms recompute is the preset default. Main cell: 37172235137. Sparse cell: 37172236293. Cells: docs/benchmarks/cells/fanet-{main,sparse}-cbr521.txt. scenario_check.py results: 0 FAIL; the WARNs are the expected oracle no-path partitions and the 3-D hop-check note. bench_parse column mapping is OK (30 checks) on both. OLSR's PDR is offered-based (#510).

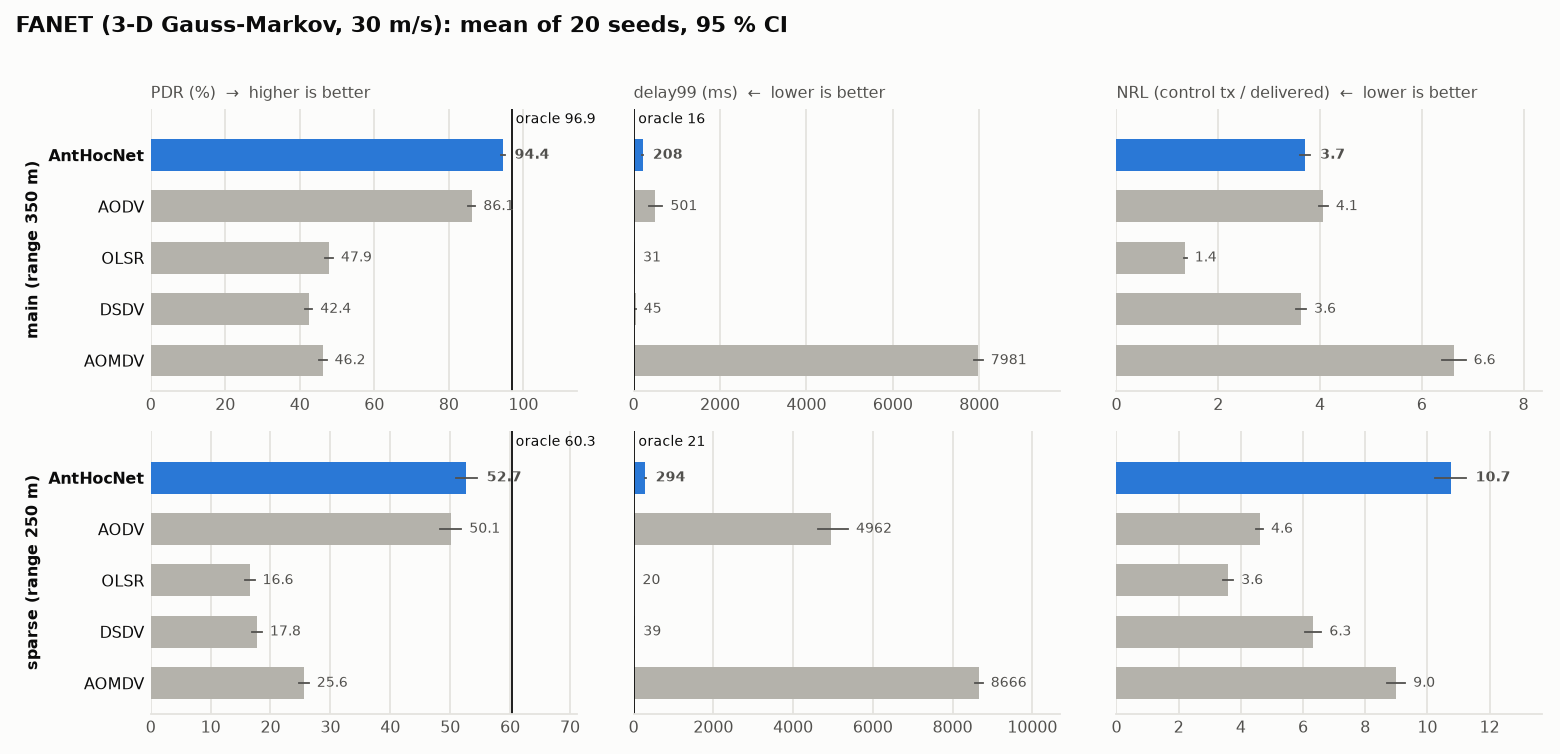

Bars: mean of 20 seeds, AntHocNet highlighted; whiskers: 95 % CI (t for PDR and NRL, bootstrap for delay99); vertical line: the oracle control. Drawn by ns3/tools/family-charts.py from the committed cells fanet-{main,sparse}-cbr521.txt.

Main cell:

metric	anthocnet	aodv	olsr	dsdv	aomdv	oracle (100 ms)
PDR %	94.43 ± 0.55	86.11 ± 1.01	47.86 ± 1.05	42.40 ± 0.95	46.23 ± 0.97	96.88 ± 0.42
delay99 (ms)	207.9 [203.4, 213.1]	500.8 [352.4, 667.4]	31.1 [28.8, 33.9]	45.0 [41.4, 48.7]	7981.4 [7878.5, 8081.5]	16.0 [15.4, 16.6]
NRL	3.71 ± 0.10	4.07 ± 0.09	1.35 ± 0.03	3.63 ± 0.10	6.63 ± 0.23	0.00
energy (mJ/bit)	1.438 ± 0.015	1.573 ± 0.026	2.826 ± 0.060	3.197 ± 0.081	2.924 ± 0.064	1.389 ± 0.014

comparison	ΔPDR (pp)	ΔNRL	Δdelay99 (ms)	Δenergy (mJ/bit)
anthocnet − aodv	+8.32 [+7.41, +9.23]	−0.36 [−0.44, −0.29]	−293 [−465, −121]	−0.135 [−0.152, −0.118]
anthocnet − olsr	+46.56 [+45.70, +47.43]	+2.35 [+2.27, +2.44]	+177 [+171, +182]	−1.388 [−1.443, −1.333]
anthocnet − dsdv	+52.02 [+51.10, +52.95]	+0.07 [−0.04, +0.19], p = 0.29	+163 [+157, +169]	−1.759 [−1.833, −1.685]
anthocnet − aomdv	+48.20 [+47.18, +49.22]	−2.93 [−3.14, −2.72]	−7774 [−7884, −7663]	−1.487 [−1.548, −1.425]

Verdicts, main cell: - AntHocNet still leads every protocol. It is 2.45 pp below the oracle (was 2.70). - It still beats AODV on all four metrics (p ≤ 7.1 × 10⁻⁴), by a smaller delivery margin: +8.32 pp (was +11.48). AODV gains most from CBR, 82.92 → 86.11. - Two orderings change: - AntHocNet's NRL edge over DSDV is now a tie (+0.07, p = 0.29). - OLSR now separates from AOMDV: +1.64 pp [+0.76, +2.51], p = 0.0027, 15/20 seeds. It was a tie. The delivery order is anthocnet > aodv > olsr > aomdv > dsdv. - The failure mechanisms are unchanged: - OLSR fails at the MAC (mac=36.87) and refuses 8.62 % at the source. - DSDV fails at the MAC (mac=50.04). - AOMDV fails in routing (route=46.45). - AntHocNet's loss is mostly reconvergence (route=3.99 [reconv=3.69]).

Sparse cell:

metric	anthocnet	aodv	olsr	dsdv	aomdv	oracle (100 ms)
PDR %	52.71 ± 1.73	50.05 ± 1.80	16.56 ± 0.77	17.79 ± 0.79	25.57 ± 0.82	60.27 ± 1.85
delay99 (ms)	293.9 [286.2, 302.4]	4962.5 [4615.7, 5378.9]	19.6 [17.6, 22.2]	39.0 [35.2, 43.5]	8666.4 [8573.5, 8757.7]	21.3 [20.7, 21.9]
NRL	10.75 ± 0.48	4.60 ± 0.11	3.59 ± 0.16	6.33 ± 0.27	9.00 ± 0.29	0.00
energy (mJ/bit)	2.582 ± 0.085	2.709 ± 0.101	8.194 ± 0.391	7.646 ± 0.330	5.286 ± 0.171	2.237 ± 0.069

Verdicts, sparse cell: - The ordering is unchanged: anthocnet > aodv > aomdv > dsdv > olsr, every adjacent gap significant. The narrowest is DSDV over OLSR, +1.22 pp [+0.93, +1.51], 20/20 seeds. - AntHocNet over AODV: +2.65 pp [+1.91, +3.39] (was +3.87), with delay99 −4669 ms and energy per bit −0.127 mJ. - AntHocNet still pays in overhead: NRL 10.75 vs AODV's 4.60. - AntHocNet is 7.57 pp below the oracle (was 7.74). The oracle's book still puts 38.24 points in "no path existed".

The tables below are the dated pre-#521 record. Where they disagree with this block, this block is current.

Main cell (fanet, 350 m)

metric	anthocnet	aodv	olsr	dsdv	aomdv	oracle (100 ms)
PDR %	94.41 ± 0.45	82.92 ± 0.81	47.85 ± 0.95	42.52 ± 1.02	46.77 ± 0.66	97.11 ± 0.37
mean delay (ms)	20.04 ± 0.50	30.51 ± 5.58	4.50 ± 0.61	7.04 ± 0.59	387.33 ± 18.67	4.27 ± 0.60
delay99 (ms)	271.7 [268.2, 275.4]	702.1 [512.6, 940.6]	23.2 [21.1, 25.9]	36.1 [33.1, 39.4]	7806.2 [7715.7, 7888.0]	18.8 [18.2, 19.4]
NRL	6.66 ± 0.14	7.79 ± 0.13	2.71 ± 0.06	7.25 ± 0.19	12.56 ± 0.35	0.00
energy (mJ/bit)	2.872 ± 0.029	3.263 ± 0.049	5.645 ± 0.120	6.367 ± 0.165	5.778 ± 0.102	2.770 ± 0.030

Paired, per seed (t-CI for PDR, NRL and energy; bootstrap for delay99; two-sided Wilcoxon):

comparison	ΔPDR (pp)	ΔNRL	Δdelay99 (ms)	Δenergy (mJ/bit)	verdict
anthocnet − aodv	+11.48 [+10.73, +12.25]	−1.14 [−1.26, −1.02]	−430 [−669, −240]	−0.391 [−0.422, −0.360]	better on all four (p ≤ 4.2 × 10⁻⁴)
anthocnet − olsr	+46.56 [+45.74, +47.38]	+3.94 [+3.84, +4.05]	+249 [+245, +252]	−2.773 [−2.881, −2.664]	delivery and energy, for overhead and tail
anthocnet − dsdv	+51.88 [+50.85, +52.91]	−0.59 [−0.75, −0.43]	+236 [+231, +240]	−3.495 [−3.649, −3.340]	delivery, overhead and energy, for tail
anthocnet − aomdv	+47.64 [+46.83, +48.45]	−5.90 [−6.23, −5.58]	−7535 [−7615, −7446]	−2.905 [−2.996, −2.815]	better on all four (p ≤ 9.6 × 10⁻⁵)

AntHocNet delivers within 2.70 pp of the oracle. The other protocols' shortfalls from the oracle:

• AODV: 14.19 pp;
• OLSR: 49.26 pp;
• AOMDV: 50.34 pp;
• DSDV: 54.59 pp.

The trailing three are close. OLSR leads AOMDV by only +1.08 pp [+0.11, +2.04], p = 0.044, on 13/20 seeds. Read that as a tie, not an ordering. Both lead DSDV with p ≤ 1.4 × 10⁻⁴.

The trailing arms fail in different ways:

• OLSR and DSDV fail on the MAC layer. Their drop books read mac=35.96 and mac=49.01. At 10–30 m/s their tables keep next hops that have already flown out of range, and each such packet burns its MAC retries before it is dropped. OLSR also refuses 8.20 % of offered sends at the source, for want of any route.
• AOMDV fails in routing. Its book reads route=45.57. Its multipath discovery cannot keep alternate paths alive at these speeds, and what it does deliver arrives late (delay99 7.8 s).
• AntHocNet's loss is mostly reconvergence (route=4.40 [reconv=3.93]).

Do not read OLSR's or DSDV's tail as a win. Their delay99 is low because they deliver only the short, easy half of the traffic. A tail measured over ≤ 48 % delivery is not comparable with one over 94 % (metrics.md). AODV delivers a comparable share, and against it AntHocNet's tail is 430 ms shorter.

Sparse cell (--range=250, the partition regime)

metric	anthocnet	aodv	olsr	dsdv	aomdv	oracle (100 ms)
PDR %	52.63 ± 1.65	48.76 ± 1.71	16.59 ± 0.75	17.91 ± 0.78	25.97 ± 0.97	60.37 ± 1.86
mean delay (ms)	32.21 ± 1.17	359.58 ± 27.49	4.60 ± 0.95	13.02 ± 4.71	704.35 ± 48.83	5.60 ± 0.49
delay99 (ms)	505.0 [472.4, 538.5]	5246.8 [4874.9, 5662.9]	19.2 [18.4, 20.1]	34.5 [31.0, 38.5]	8588.0 [8383.9, 8785.9]	24.9 [24.3, 25.6]
NRL	16.32 ± 0.64	8.78 ± 0.21	7.18 ± 0.33	12.61 ± 0.51	17.04 ± 0.52	0.00
energy (mJ/bit)	5.161 ± 0.161	5.557 ± 0.194	16.352 ± 0.790	15.174 ± 0.650	10.433 ± 0.371	4.466 ± 0.138

comparison	ΔPDR (pp)	ΔNRL	Δdelay99 (ms)	Δenergy (mJ/bit)
anthocnet − aodv	+3.87 [+3.17, +4.56]	+7.54 [+7.06, +8.01]	−4742 [−5146, −4374]	−0.396 [−0.475, −0.316]
anthocnet − olsr	+36.04 [+34.82, +37.25]	+9.14 [+8.70, +9.59]	+486 [+454, +519]	−11.191 [−11.863, −10.520]
anthocnet − dsdv	+34.73 [+33.44, +36.01]	+3.72 [+3.19, +4.25]	+470 [+439, +503]	−10.013 [−10.565, −9.462]
anthocnet − aomdv	+26.66 [+25.44, +27.88]	−0.72 [−1.42, −0.01]	−8083 [−8276, −7875]	−5.272 [−5.555, −4.989]

This cell is partition-bound by design, so its absolute PDR does not measure protocol quality. Even the oracle delivers only 60.37 %, and its drop book attributes 38.25 points to "no path existed", which no protocol can recover. Within that ceiling the protocols separate cleanly:

anthocnet > aodv > aomdv > dsdv > olsr

Every adjacent gap is significant. The narrowest is DSDV over OLSR, +1.31 pp [+0.97, +1.65], p = 1.1 × 10⁻⁴, 19/20 seeds.

AntHocNet sits 7.74 pp below the oracle. It pays for that lead in overhead: nearly twice AODV's NRL (16.32 vs 8.78), as its ants keep searching a graph that keeps splitting. AODV buffers packets for seconds waiting for a route that does not exist, which is its 5.2 s delay99. OLSR refuses 60.35 % of offered sends at the source. That refusal is the share the pre-#510 PDR left out.

What this page does not measure

• Route stability. The issue asks for route lifetime, route changes and repair latency. That metric family (#294 item 4) does not exist in the harness yet, so no route-stability column is published. The drop book's AntHocNet reconv/repair split is the closest available signal.
• A geographic arm (see above).
• Hop or latency bounds (see the oracle section below).

The oracle at FANET speeds

The oracle is a global-knowledge shortest-path control that re-derives the graph every RecomputeInterval. Two of its properties do not survive this family's speeds (#506).

Delivery: a bound only with a fast recompute. At the default 1 s, nodes closing at up to 60 m/s move up to 60 m between recomputes. A fewest-hops route prefers the longest links, which break first, so the oracle sends over links that no longer exist:

cell	oracle PDR at 1 s	oracle MAC drops at 1 s	oracle PDR at 100 ms	MAC drops at 100 ms	AntHocNet
main	88.89 (below AntHocNet on 20/20 seeds)	7.89 %	97.11 (above on 20/20)	0.91 %	94.41
sparse	51.09 (below on 19/20)	9.23 %	60.37 (above on 20/20)	1.11 %	52.63

At 100 ms the oracle is above every arm on every seed in both cells, so the delivery bound holds, and it is the only oracle property quoted on this page.

Hops: not a bound on a moving field. The identity-matched hop check fails at 100 ms as well as at 1 s. Since #506, scenario_check.py results reports this as one WARN per file on any 3-D cell instead of a FAIL per seed. The planar corpus keeps the FAIL. The excesses it counts are:

• Main cell: 16 times on 10 seeds. Ten of those are against AOMDV, whose few delivered packets are its shortest. Against the other arms it fails only on seeds 7 and 12.
• Sparse cell: on every seed against every arm.

With AOMDV in the arm set, the common set shrinks to the packets every arm delivered, and in the sparse cell the oracle's excess grows to 1.0–2.1 hops. Two effects break the check's premise that the same packet crosses the same topology in every arm:

• Delay skew. AODV holds matched packets for about 2 s in its discovery buffer, so its copy crosses the field seconds after the oracle's.
• Mid-flight re-routing. The oracle looks the route up afresh at each hop, in a graph that changes under the packet. A delivered path is then a chain of several instants' shortest paths, which can be longer than any one instant's. A local control confirms that motion is the cause: the same sparse cell at walking speed (--speed=1 --speedMin=0.5, 2 seeds) has the oracle at or below DSDV's matched hops (3.16 vs 3.47, 2.15 vs 2.20). At 10–30 m/s it is 0.6–0.7 hops above.

So no hop or latency bound is quoted for the FANET family; the oracle's delay columns above are measurements, not bounds.

Ranking stability: MANET vs FANET

ADR-0019 keeps the protocol configuration identical across families. A ranking that changes between families is therefore a property of the network, not of our tuning.

Comparators. The comparison uses every mobile MANET cell measured on the current code, with OLSR offered-based (#510) everywhere:

• the six grid cells, two-ray or Nakagami;
• the disk-propagation paper cell (cells/paper-mobile-jitter*.txt, RWP, pause 0, from #494).

The paper cell is the channel-matched comparator, because FANET also runs on the disk model.

ordering	MANET grid (6 cells)	MANET paper, disk	FANET main	FANET sparse
delivery	anthocnet > olsr > aodv > dsdv (5 cells); anthocnet > aodv > olsr > dsdv (gaussmarkov-tworay)	anthocnet > aodv > olsr > dsdv	anthocnet > aodv > olsr > dsdv	anthocnet > aodv > dsdv > olsr
overhead (NRL)	olsr < anthocnet < dsdv < aodv	same	same	olsr < aodv < dsdv < anthocnet
tail (delay99)	two-ray: OLSR best, AntHocNet second; Nakagami: AntHocNet best, OLSR worst	OLSR best, AntHocNet second	OLSR, DSDV, then AntHocNet (survivorship: they deliver ≤ 48 %)	same as main

Stable across every mobile cell: AntHocNet delivers most. That holds in all six grid cells, the disk paper cell and both FANET cells, each paired and significant. AntHocNet's lead over the best classical rival grows with the family:

• grid: +6.1 … +11.4 pp over the best classical rival (OLSR, or AODV in gaussmarkov-tworay);
• paper disk cell: +13.1 pp over AODV;
• FANET main cell: +11.5 pp over AODV;
• FANET sparse cell: +3.9 pp over AODV, inside a 60 % oracle ceiling.

It is not stable on a static field. On the static mesh, OLSR and DSDV deliver more (100.00 and 99.68 against 99.28). So "AntHocNet delivers most" is a claim about mobile networks.

Not stable: the order of the classical protocols. A claim about it that does not name its family, and on MANET its channel, is unsupported:

• AODV vs OLSR flips with the cell.
• OLSR leads in five grid cells (+2.9 … +12.3 pp).
• AODV leads in gaussmarkov-tworay (+1.9 pp) and in the disk paper cell (+8.8 pp).
• In FANET, AODV leads by +35.1 pp (main) and +32.2 pp (sparse), an order of magnitude wider than anything on MANET.
• OLSR is family-sensitive, not merely channel-sensitive.
• It delivers 74–89 % on every MANET cell, but 47.85 % at FANET speeds.
• Its MAC drop rate rises from 15 % (paper cell) to 36 %, because its tables keep next hops that have flown out of range.
• In the partition-bound sparse cell it refuses 60 % of sends at the source and falls to last.
• DSDV is last on every MANET cell but not in sparse FANET. There, OLSR falls below it, by 1.31 pp [0.97, 1.65], 19/20 seeds.

Overhead is stable where the network is connected. olsr < anthocnet < dsdv < aodv holds in all seven MANET cells and in the main FANET cell. It breaks only in the sparse cell, where AntHocNet's ants keep searching a graph that keeps splitting. AntHocNet's NRL there is 16.32, the highest of the four.

The tail ordering does not transfer at all. In FANET the two lowest-delay99 arms are those that deliver less than half the traffic. Their tails are survivorship and not comparable (metrics.md).

Hello interval vs link lifetime. This is the knob-watchlist item from #300. The #481 preflight puts the link lifetime at 30 m/s at about 5.8 hello periods (350 m) and 4.2 (250 m), above its 3-period line. The campaign gives no reason to open a tuning ticket: AntHocNet's loss in the main cell is 3.93 pp of reconvergence and 0.42 pp of MAC drops. The hold caps and the multipath parameters likewise show no measured cost here. AntHocNet's tail is the lowest among the arms that deliver comparably. ADR-0019 forbids per-family defaults in any case. A knob becomes a ticket only on a measured delta.

Provenance of the numbers

The published tables come from the six-arm dispatches plus the #510 OLSR re-runs:

cell	arms	run	commit	cell file
main, 350 m	anthocnet, aodv, olsr, dsdv, aomdv, oracle (100 ms), ##ENERGY##	36957200584	77098cfe	cells/fanet-main-6arm.txt
sparse, 250 m	same	36957203615	77098cfe	cells/fanet-sparse-6arm.txt
main, 350 m	olsr, #510 offered-based PDR	36962716872	bd1f4e49	cells/fanet-main-olsr510.txt
sparse, 250 m	olsr, #510 offered-based PDR	36962719693	bd1f4e49	cells/fanet-sparse-olsr510.txt

77098cfe is the #508 branch head; its code is what merged as a412ab0f. bd1f4e49 is the #511 branch head; its code is what merged as f480d0ae.

Controls:

• The six-arm dispatches. All 100 per-seed ##RUN## rows of the five arms measured before are byte-identical to the 0197fe66 dispatches below. Adding AOMDV and ##ENERGY## changed nothing else.
• The OLSR re-runs. Every OLSR ##RUN## column except PDR and the offered-load percentiles (off50/off90, offered-based by construction) is byte-identical to the six-arm dispatch. The new PDR matches #510's delivered-bytes estimate to ≤ 0.08 pp on every seed.

The superseded first measurement (#482) had four protocols plus the oracle, and OLSR's pre-#510 denominator:

cell	arms	run	commit	cell file
main, 350 m	anthocnet, aodv, olsr, dsdv (+ oracle at 1 s)	36932609311	54886e2a	cells/fanet-main.txt
sparse, 250 m	anthocnet, aodv, olsr, dsdv (+ oracle at 1 s)	36932612649	54886e2a	cells/fanet-sparse.txt
main, 350 m	oracle at 100 ms (all five arms re-run)	36936966493	0197fe66	cells/fanet-main-oracle100ms.txt
sparse, 250 m	oracle at 100 ms (all five arms re-run)	36936970028	0197fe66	cells/fanet-sparse-oracle100ms.txt

Dispatch: paper-benchmark.yml with

scenario=fanet version=3.42-opt nNodes=30 time=900 runs=20
areaX=1000 areaY=1000 pause=0 speed=30 range=350   # or range=250
propagation=range mobility=gaussmarkov
protocols=anthocnet,aodv,olsr,dsdv,aomdv,oracle
extraArgs=--ns3::oracle::Topology::RecomputeInterval=100ms

Since #506 the extraArgs line is the preset's default and may be omitted; the result is byte-identical. The OLSR re-runs use protocols=olsr. areaZ, speedMin, flows and rate come from the preset.

scenario_check.py results: the oracle no-path WARNs are expected on a field that partitions. The hop-check class explained above is the only other finding. It was a FAIL when these cells were published; since #506 it is one WARN per file. bench_parse column mapping is OK on every cell.
